Dual LTE Cat 6 router with 5 Gigabit Ethernet ports, dual-band Wi-Fi 5, Bluetooth LE, GPS, and I/Os, ideal for mission-critical applications requiring robust connectivity.

Feature

Specification

Model

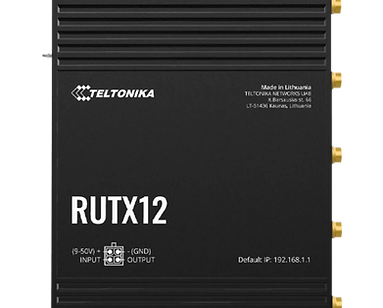

Teltonika RUTX12 Dual LTE Cat 6 Industrial Cellular Router

Cellular Connectivity

Dual LTE Cat 6 (up to 300 Mbps DL / 50 Mbps UL per modem), 3G (up to 42 Mbps DL / 5.76 Mbps UL)

SIM Slots

2 x 2FF (Mini-SIM), eSIM support (optional)

Ethernet Ports

5 x 10/100/1000 Mbps (1 WAN, 4 LAN)

Wi-Fi

Dual-Band (2.4 GHz & 5 GHz), IEEE 802.11ac Wave 2 (Wi-Fi 5)

Bluetooth

Bluetooth Low Energy (BLE)

USB Port

1 x USB 2.0 host

GNSS

GPS support for location services and time synchronization

Digital I/O

1 x Digital Input, 1 x Digital Open Collector Output (via 4-pin socket)

Power Supply

9–50 VDC via 4-pin power socket

Mounting Options

DIN rail, wall mount, surface mount

Operating Temperature

-40°C to +75°C

Ingress Protection

IP30

Dimensions (W x H x D)

132 x 44.2 x 95.1 mm

Weight

0.57 kg
