Stratum-1 NTP server utilizing GNSS for precise time synchronization, offering multiple interfaces and robust security features, ideal for industrial and private networks.

Feature

Specification

Model

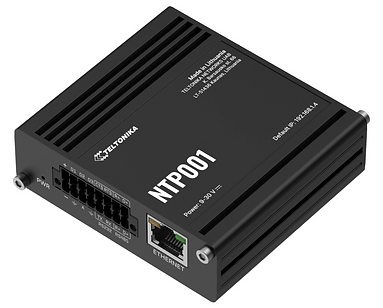

Teltonika NTP001

Time Source

GNSS (GPS, GLONASS, Galileo, BeiDou, QZSS)

NTP Stratum

1 (Primary Reference)

NTP Accuracy

±1 ms (Ethernet)

NTP Performance

>300 NTP requests per second (wire speed)

Interfaces

1 × LAN (10/100 Mbps), 1 × RS232, 1 × RS485, I/O ports

Protocols Supported

NTPv4, Daytime, Date over Serial, MODBUS TCP, MQTT, SNMP, SSH, HTTPS, DNS, DHCP, ICMP, ARP, etc.

Security Features

Pre-shared keys, X.509 certificates, TACACS+, RADIUS, IP/login blocking, 802.1x, Web filter

Operating System

RutOS (based on OpenWRT)

Power Input

9–30 VDC via terminal block

Mounting Options

DIN rail, wall, or flat surface (requires additional kit)

Dimensions (W x H x D)

74.5 × 25 × 64.5 mm

Weight

131 g

Housing Material

Anodized aluminum

Operating Temperature

-40°C to +75°C

Humidity

10%–90% non-condensing

Ingress Protection

IP30

Regulatory Approvals

CE, UKCA, CB, EAC, WEEE
